For patio doors without roller shutters: Measuring and installation instructions
For windows without roller shutters: Measuring and installation instructions
For patio doors with roller shutters: Measuring and installation instructions
For windows with roller shutters: Measuring and installation instructions
Measuring instruction video: Notice:
Installation instructions → click (PDF)

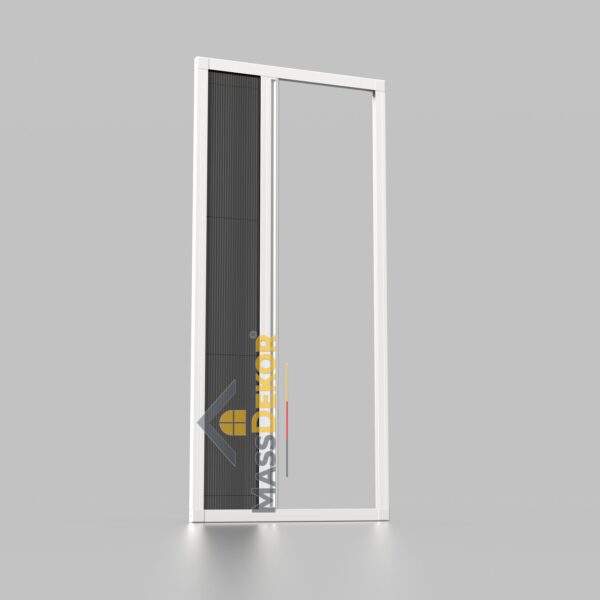

MASS DEKOR®️ Pleated fly screen for balcony doors and windows
Product features:
- Aluminium profile:
- Width: 30 mm
- Installation depth: 18 mm
- Material: High-quality aluminium for especially high stability and durability.
- Installation options:
- Installation flexibility:
- If the distance between the roller shutters is more than 20 mm, the fly screen can be installed between the roller shutters.
- If the distance is less than 20 mm, it is installed on the roller shutter rails – the stopper may need to be shortened or turned.
- Suitable for double-leaf doors.
- Fastening options:
- The fly screen can be fastened at the four corners with screws or with double-sided adhesive tape. Screw mounting is recommended for an even more stable and durable installation.
- Installation flexibility:
- Measurement details:
- Clear opening measurements: The measurements are taken as clear opening measurements.
- 30 mm + 30 mm profile width is added to the height.
- 60 mm is also added to the width (30 mm + 30 mm).
- Important notice: If the width or height is less than 60 mm, the existing width and height are used. A tolerance of 10 mm is accepted for height and width.
- Quality and compatibility:
- High load capacity: Our fly screens are characterized by excellent resistance to stress and wear resistance.
- Compatibility: Suitable for wooden doors, metal doors and plastic doors.
- High-quality roller system: Thanks to the robust roller system, the fly screen can be opened and closed easily.
- Advantages:
- Effective insect protection: Reliably prevents flies, mosquitoes, insects and other pests from entering your home through windows and doors.
- Fresh air and ventilation: Ensures optimal air circulation in your home and workplace without letting unwanted insects in.
- Easy handling: Very easy to install and clean, for long-term use.
Installation note:
- The fly screens can be fastened at the four corners with screws or with double-sided adhesive tape. For more stability and a permanent solution, we recommend screw mounting.
Protect your home from insects – with MASS DEKOR®️ pleated fly screens!
